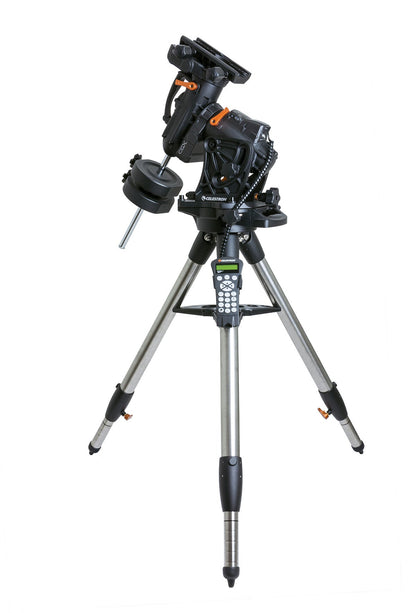

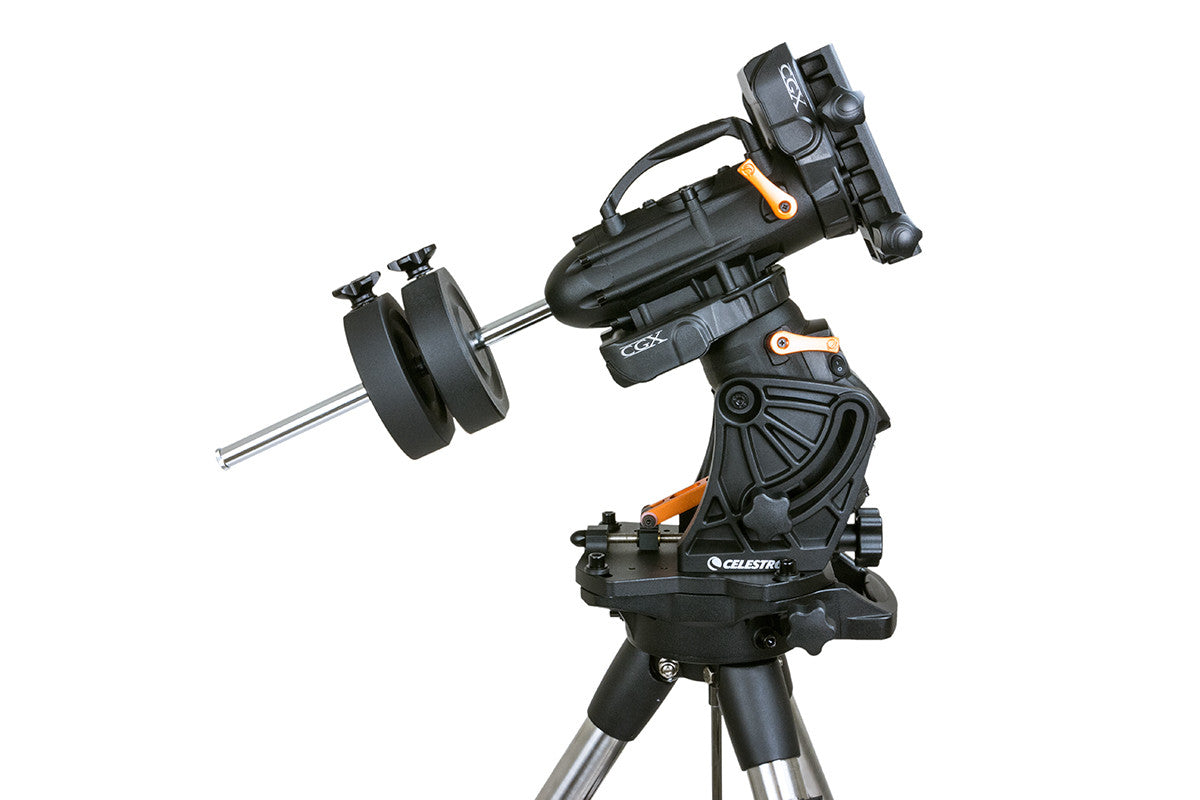

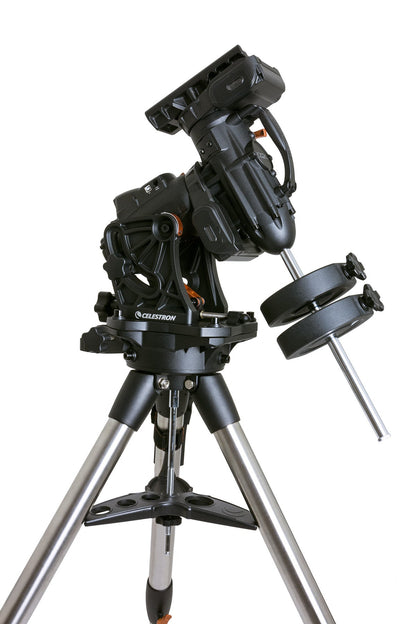

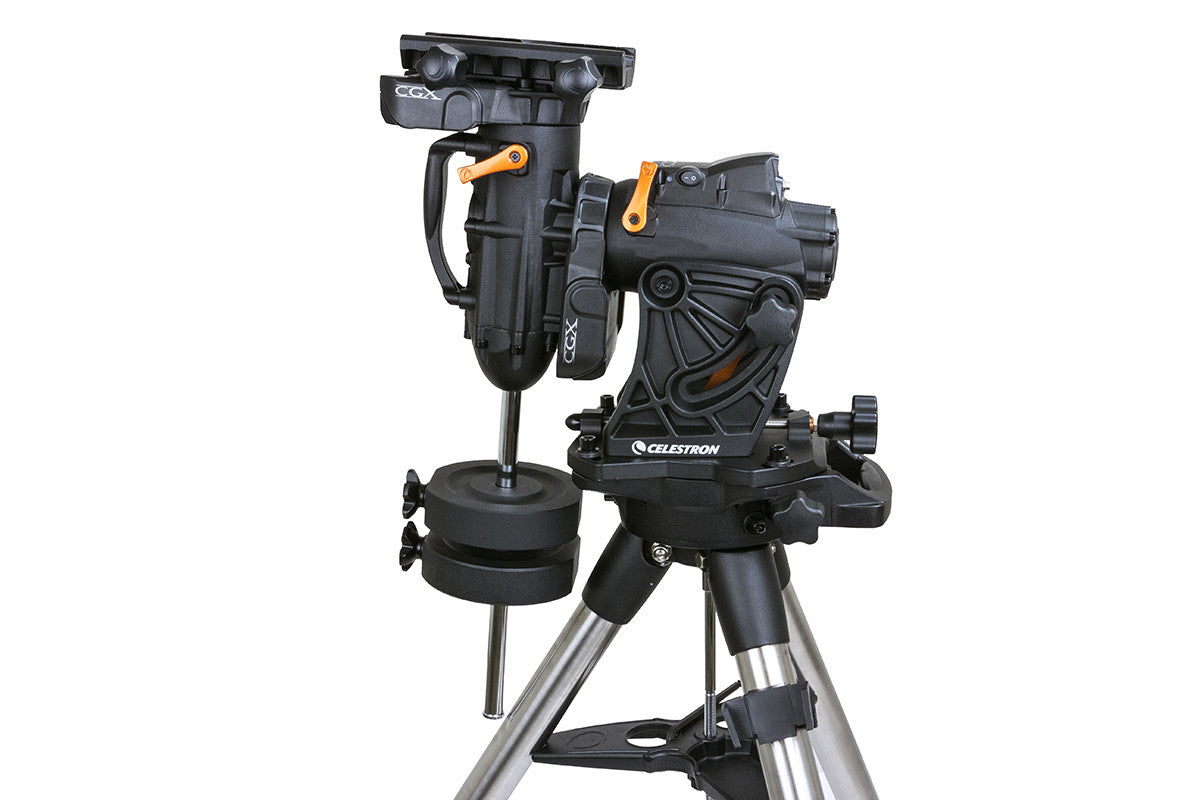

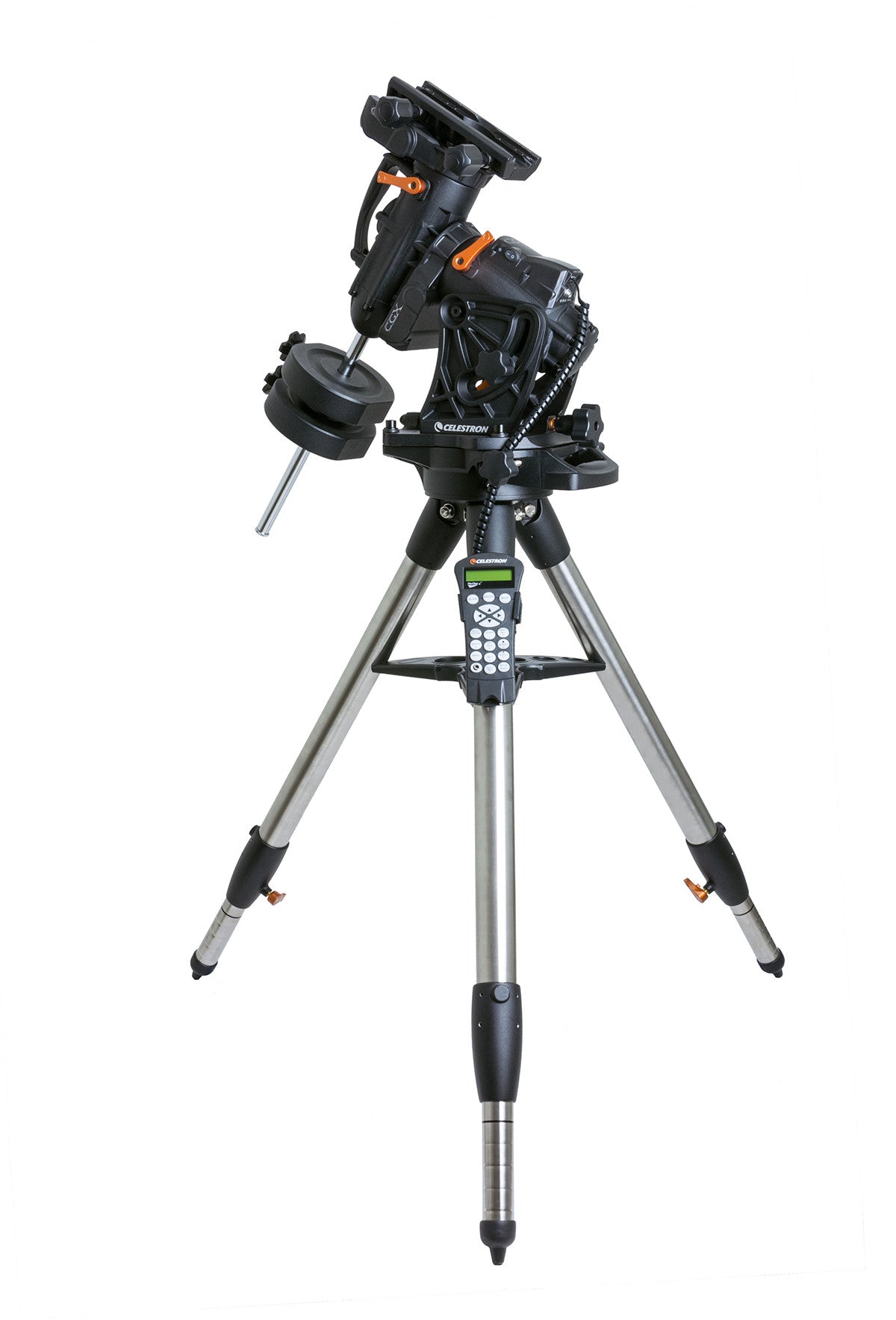

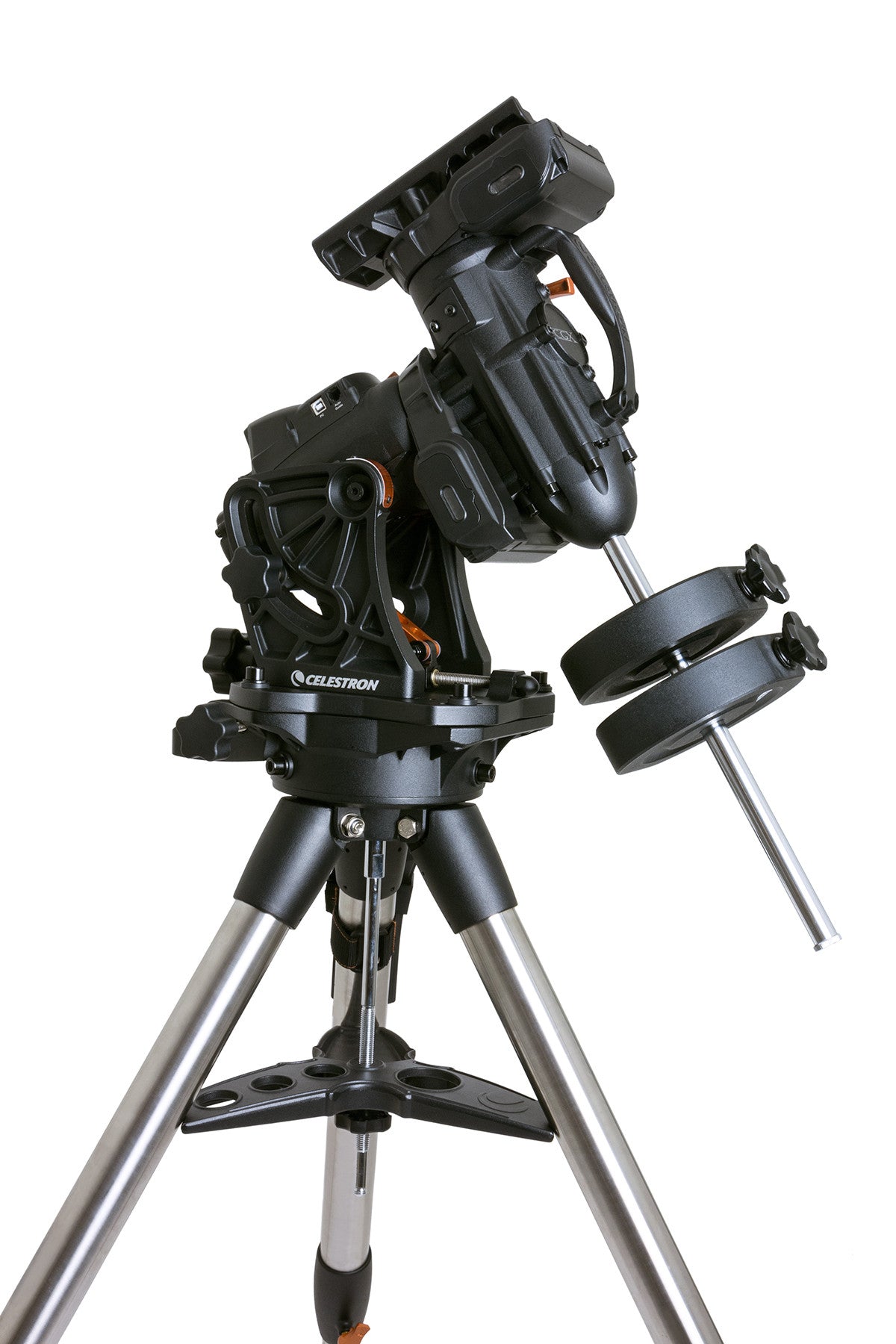

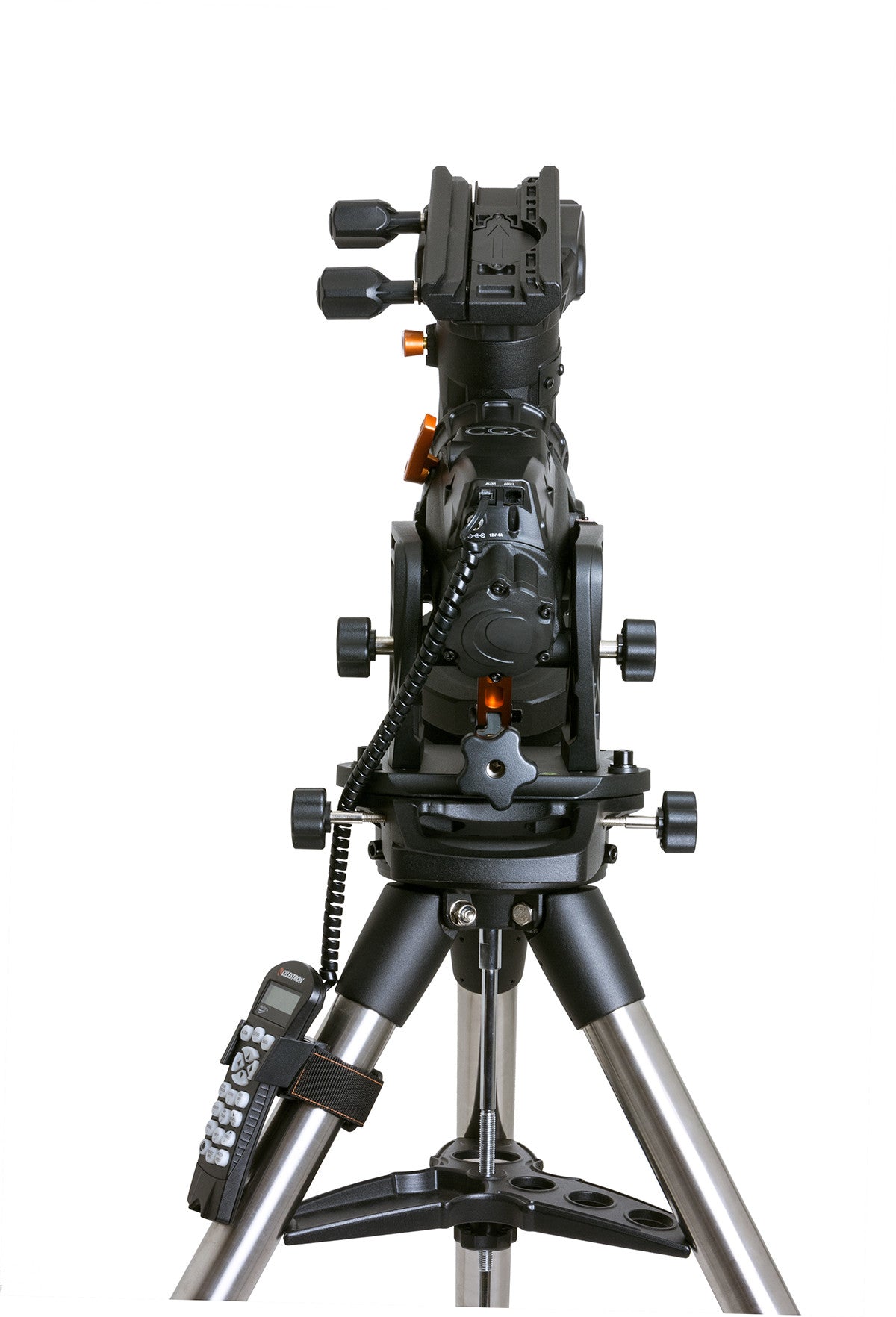

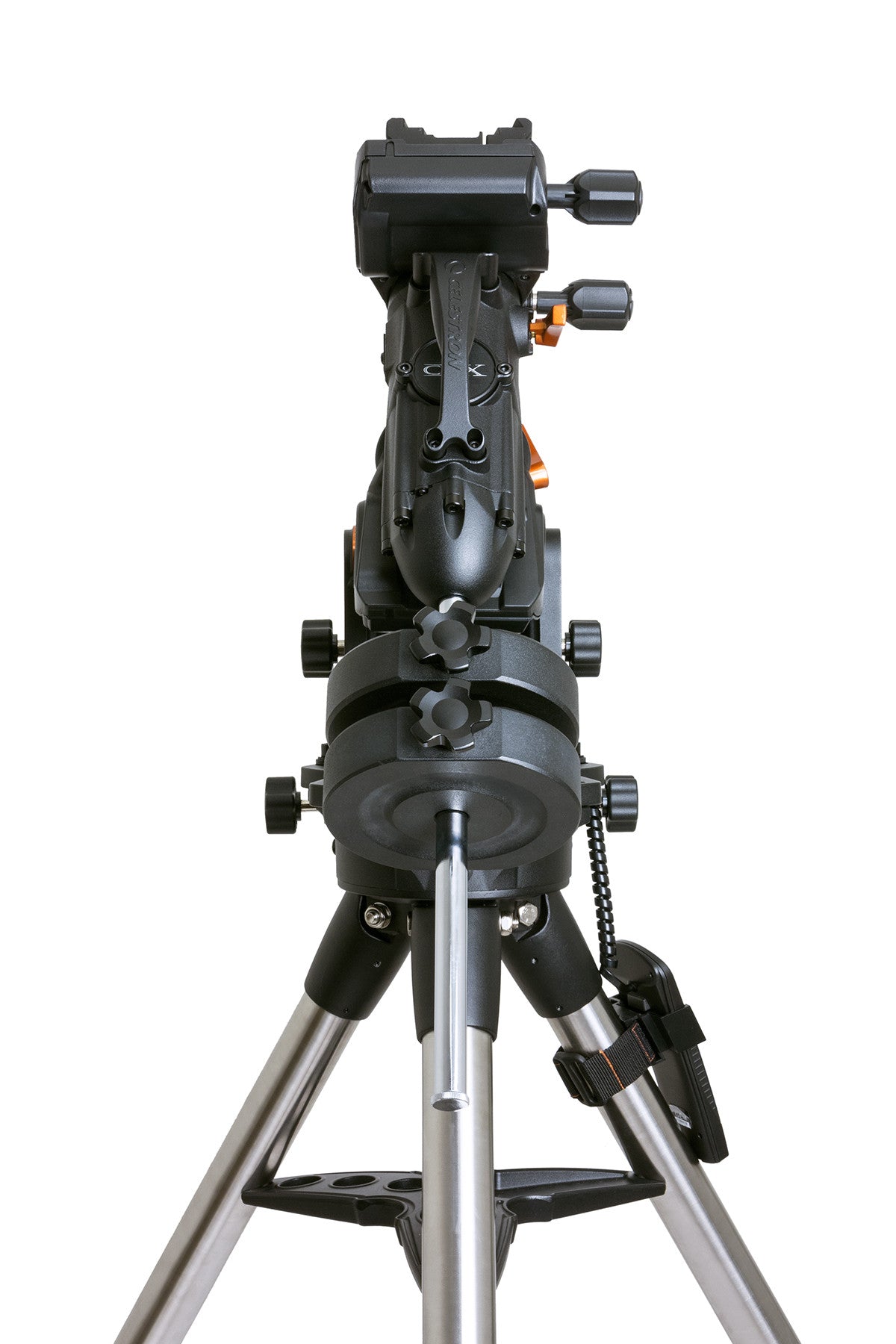

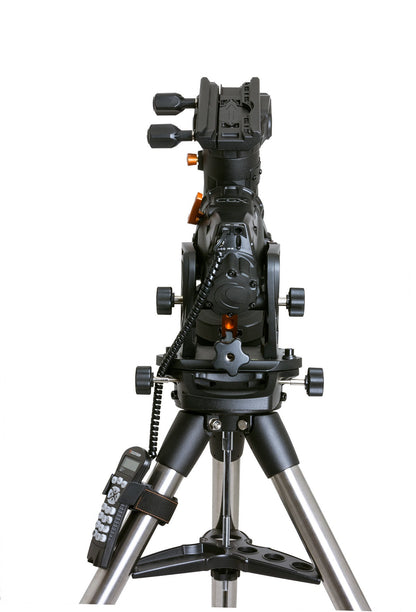

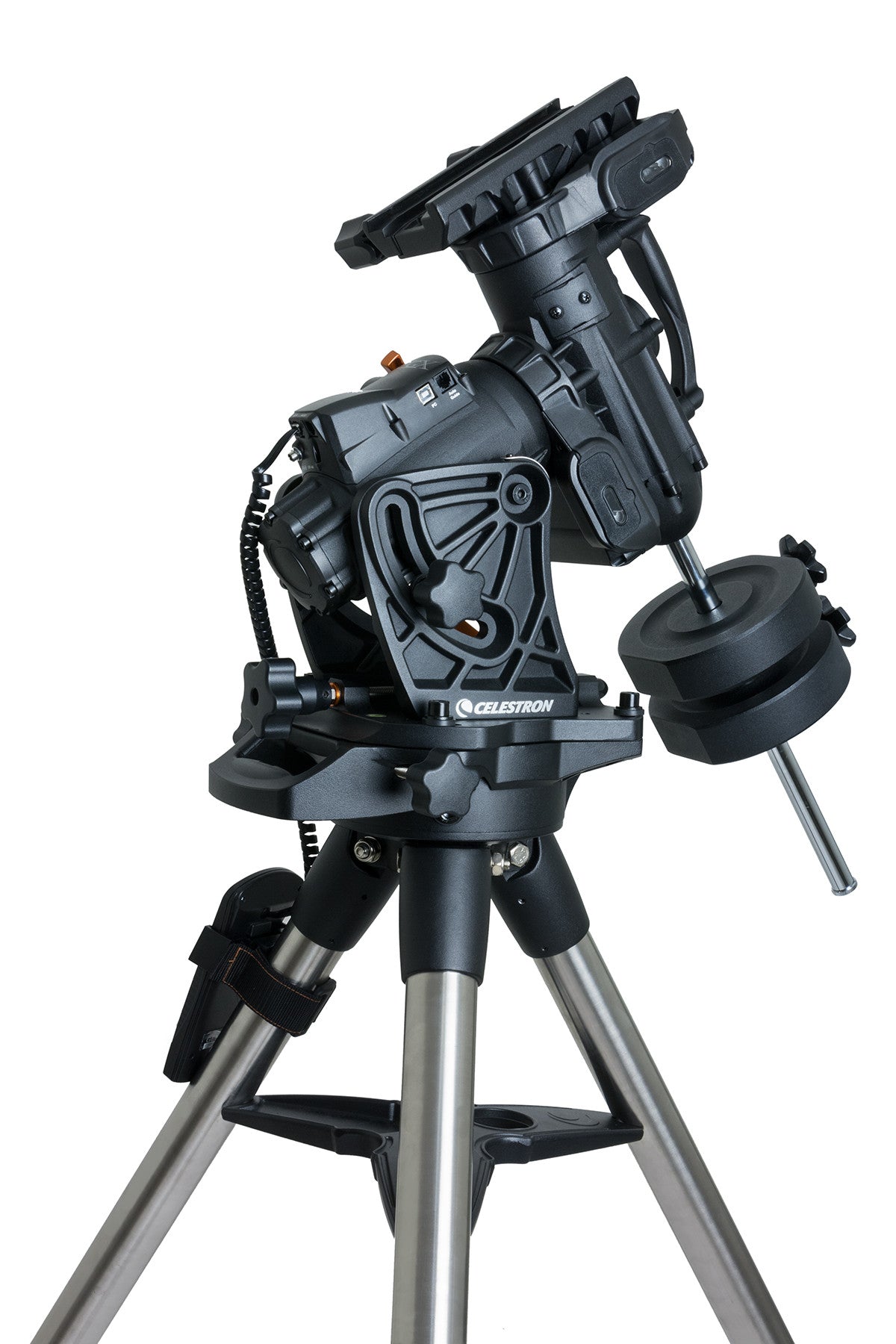

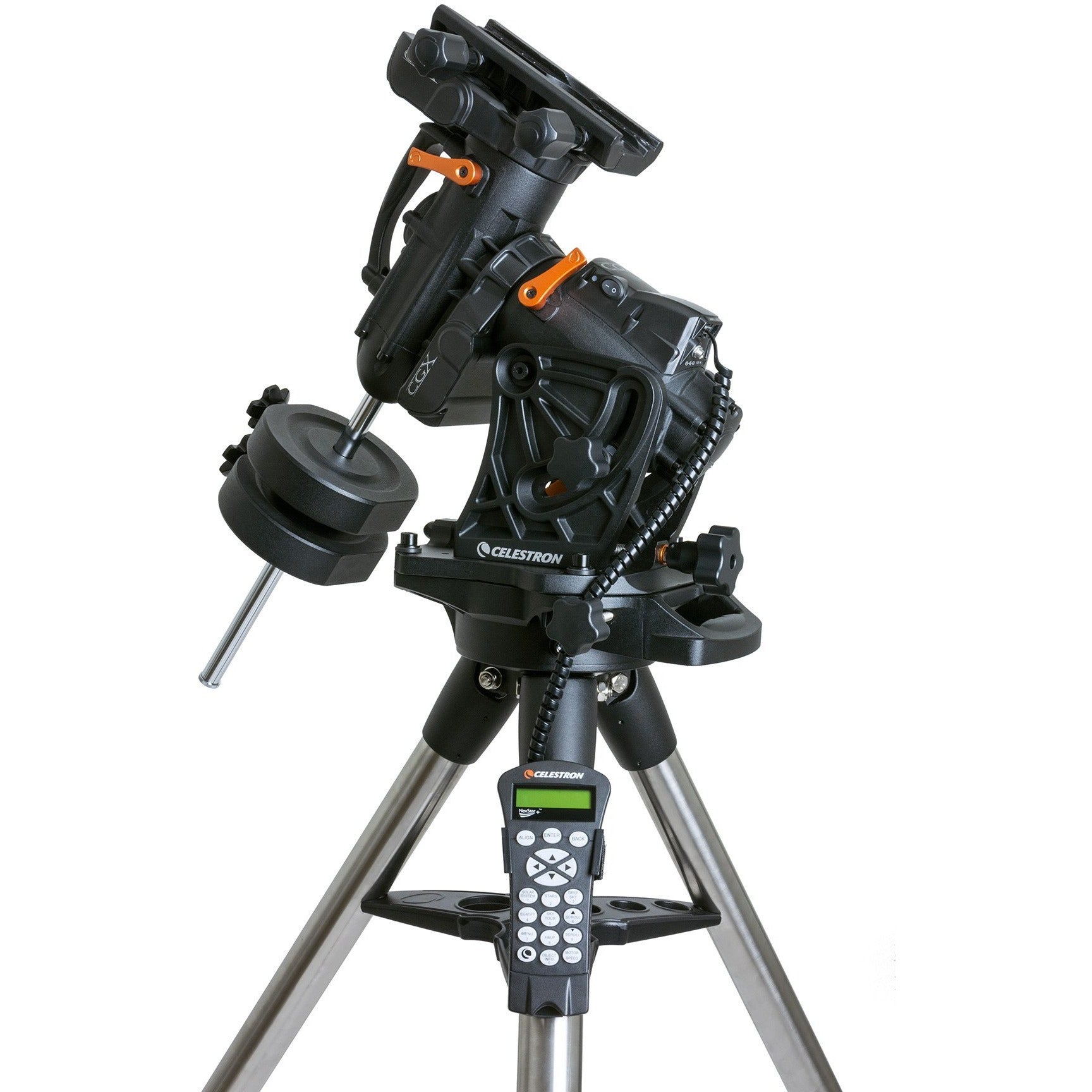

CGX Equatorial Mount and Tripod

CGX Equatorial Mount and Tripod

91530-CGL

Out of stock

£2,599.99
£2,599.99
Tax included.

2-Year Warranty

  • Increased load capacity to 55 lb

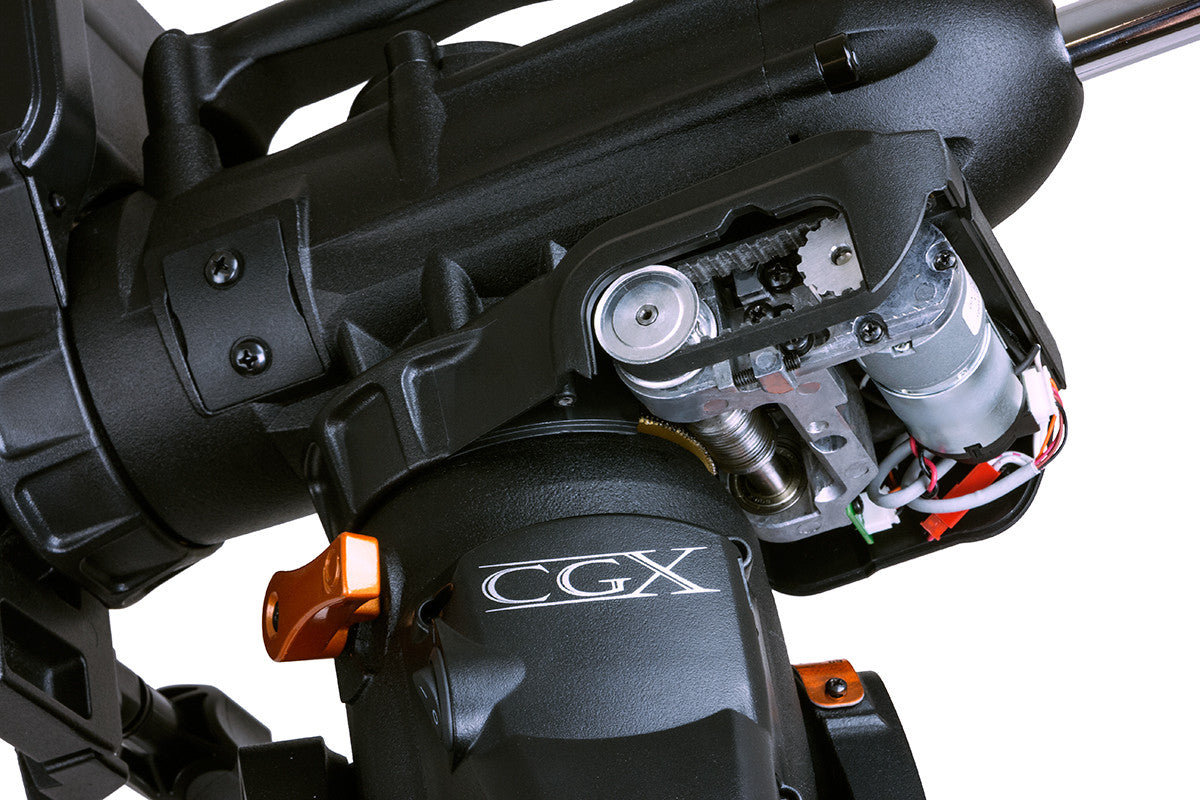

  • Heavy Duty belt-drive system minimizes backlash while providing smooth motor operation under heavy loads
  • Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
  • Internal cabling for worry-free remote operation. Power input and accessory ports remain stationary while the mount slews to avoid snags
  • Control software developed in conjunction with PlaneWave Instruments for professional level control operation and imaging

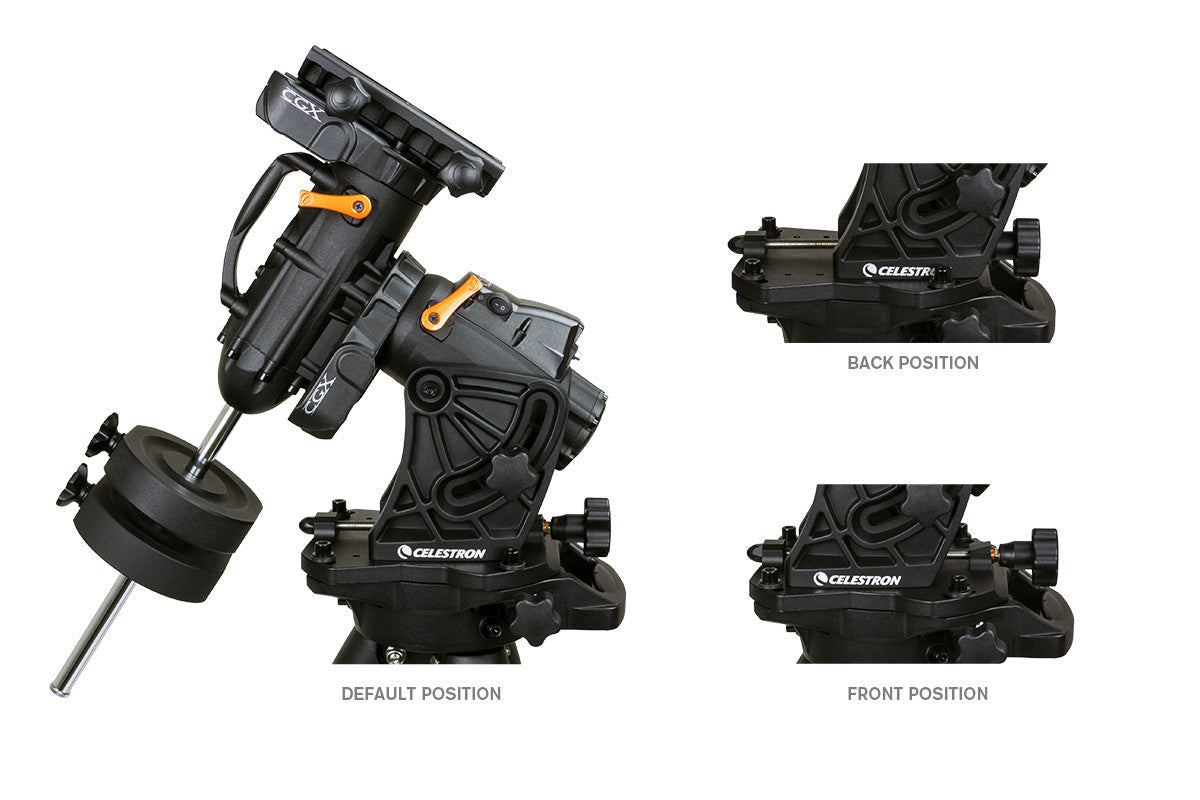

  • Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3°-65° latitude range

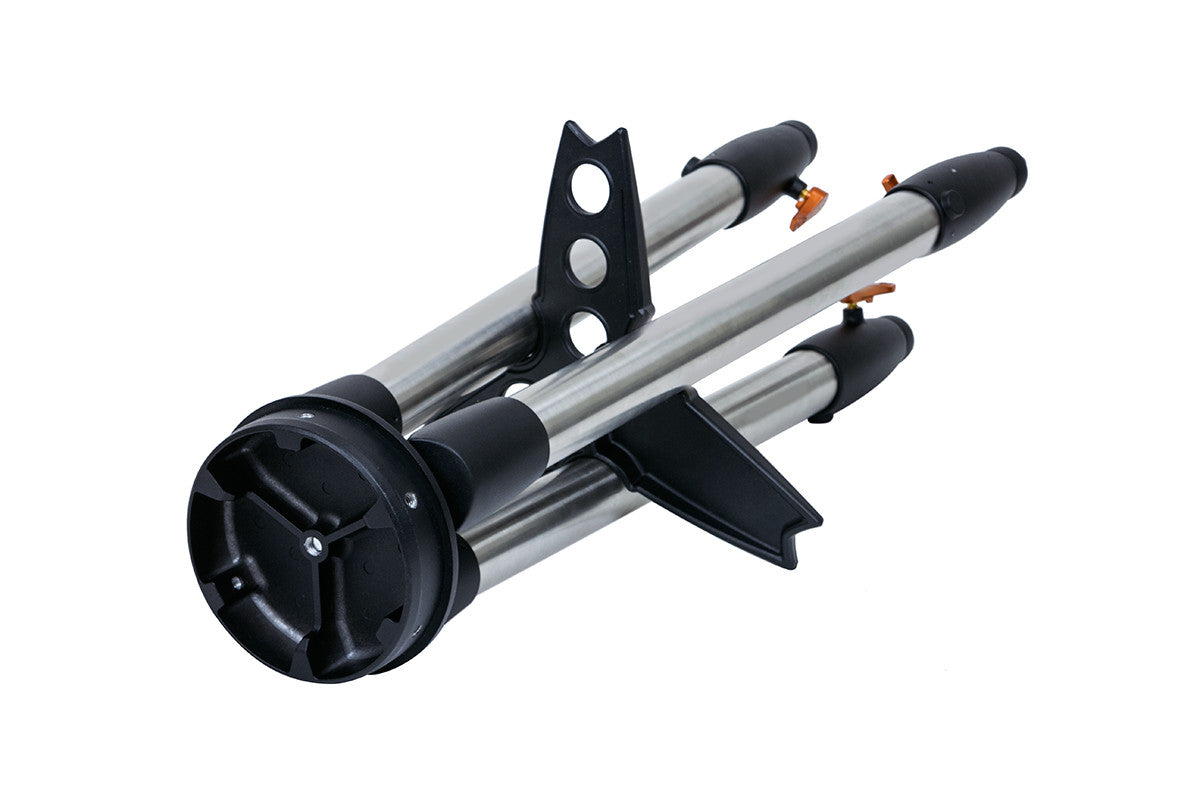

  • 2" steel legs with height index marks for quick leveling

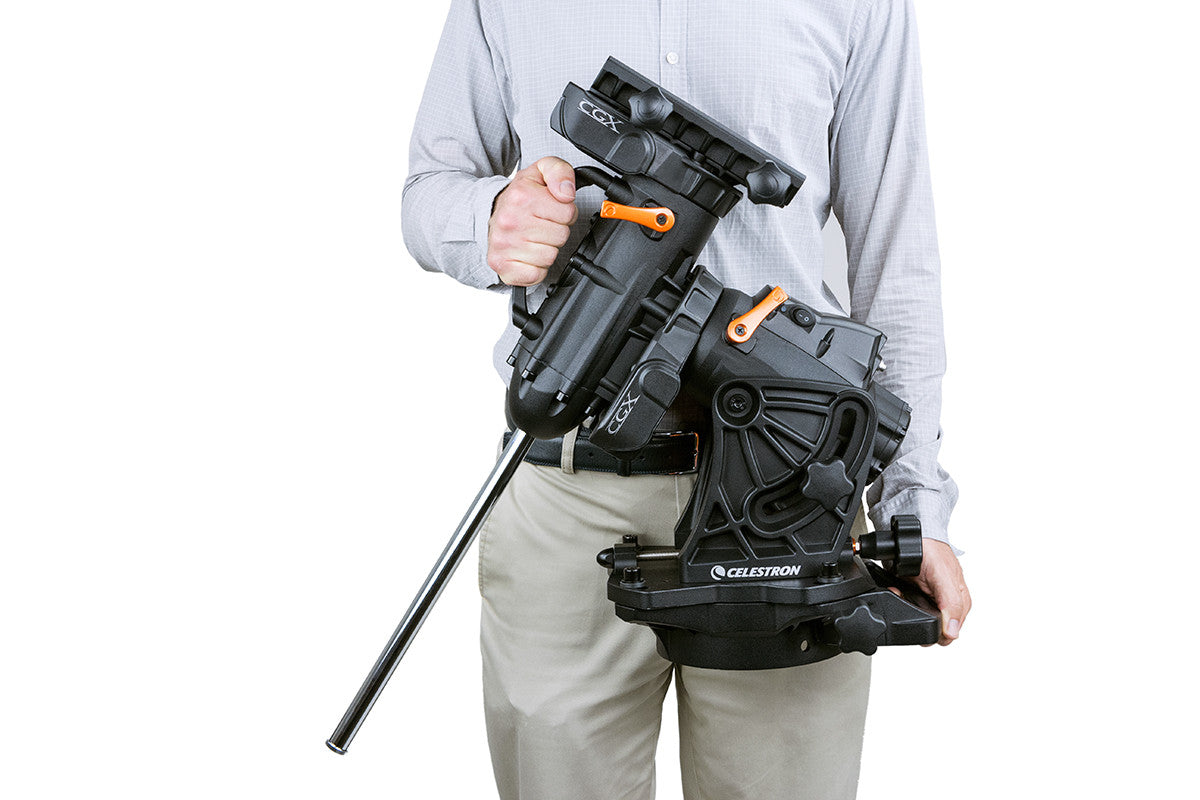

  • Two handles for easy pickup and transport
  • Ergonomically designed dovetail clamping knobs
  • Ergonomic latitude adjuster for smooth and easy adjustment under full loads

Specifications

Mount Info:
Mount Type: Computerized Equatorial
Instrument load capacity: 55 lbs (25 kg)
Height adjustment range (includes mount and tripod): 1200.15mm - 1968.5mm (47.25" - 77.5")
Tripod Leg Diameter: 50.8mm (2") Steel tripod with graduated markings on lower section
Latitude adjustment range: 3° - 65°
Mount Head Weight: 44 lbs (20 kg)
Accessory Tray: Yes
Tripod Weight: 19.2 lbs (8.7 kg)
Weight of Counterweights: 2 x 11 lbs
Slew Speeds: 9 slew speeds - max speed 4°/second
Tracking Rates: Sidereal, Solar and Lunar
Tracking Modes: EQ North and EQ South
GPS: N/A
Dovetail Compatibility: Dual saddle plates (CG-5 and CGE saddle)
Number of Auxiliary Ports: 2 AUX Ports (Hand Control can use either AUX Port)
Autoguide Port: Yes
USB Port: Yes, input for Mount and Hand Control
Power Requirements: 12V DC, 4 amps
Motor Drive: DC servo motors
Alignment Procedures: 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction: Yes
Computerized Hand Control: 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
NexStar+ Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software: CPWI Telescope Control Software | Celestron Starry Night Special Edition Software | SkyPortal App
Total Kit Weight: 85.2 (38.6 kg)

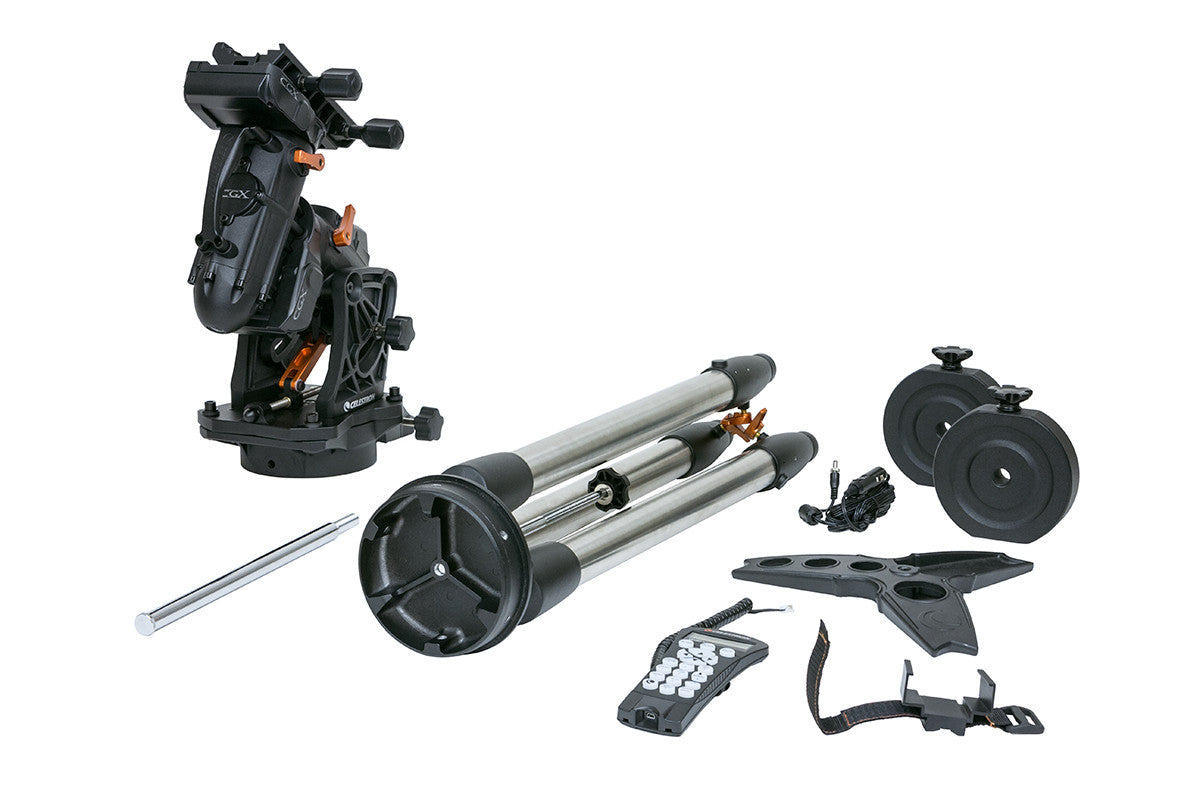

Included Items: CGX Equatorial Head | CGX Tripod | Accessory Tray | 2 x 11 lbs counterweights | NexStar+ Hand Control | 8mm Allen Wrench | 12V DC Power Cable | Hand Control Holster
View full details

Customers Also Purchased

For eight years, Celestron’s workhorse CGEM mount lineup has been the German Equatorial backbone for telescopes ranging from 6 to 11 inches of aperture. Since that time, many more astro-imagers and planetarium controlled setups have emerged as backyard telescope technology has evolved. Celestron’s engineering team applied their years of experience designing German Equatorial mounts to the all-new CGX EQ, a culmination of all the advancements made to our technologies, value, and ease-of-use.

The  CGX was designed to better support your telescope for both visual and astro-imaging pursuits. Key design goals included a lower profile EQ head, which provides a more compact and therefore more stable setup; a better drive system; remote operation-friendly with home and limit optical sensors; easier polar alignment adjustments; and better cable management. In addition to that, we’ve made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and transport. The CGX is our Equatorial backbone to support a wide range of telescopes.
