LCD Digital Microscope II

LCD Digital Microscope II

44341-CGL

Out of stock

£314.99
£314.99
Tax included.

2-Year Warranty

  • Professional digital biological microscope
  • Full color 3.5" TFT LCD screen with onboard software
  • Built-in 5MP digital camera captures high-resolution images and 30 fps SD video of your specimen
  • Fully adjustable mechanical stage for easy slide movement

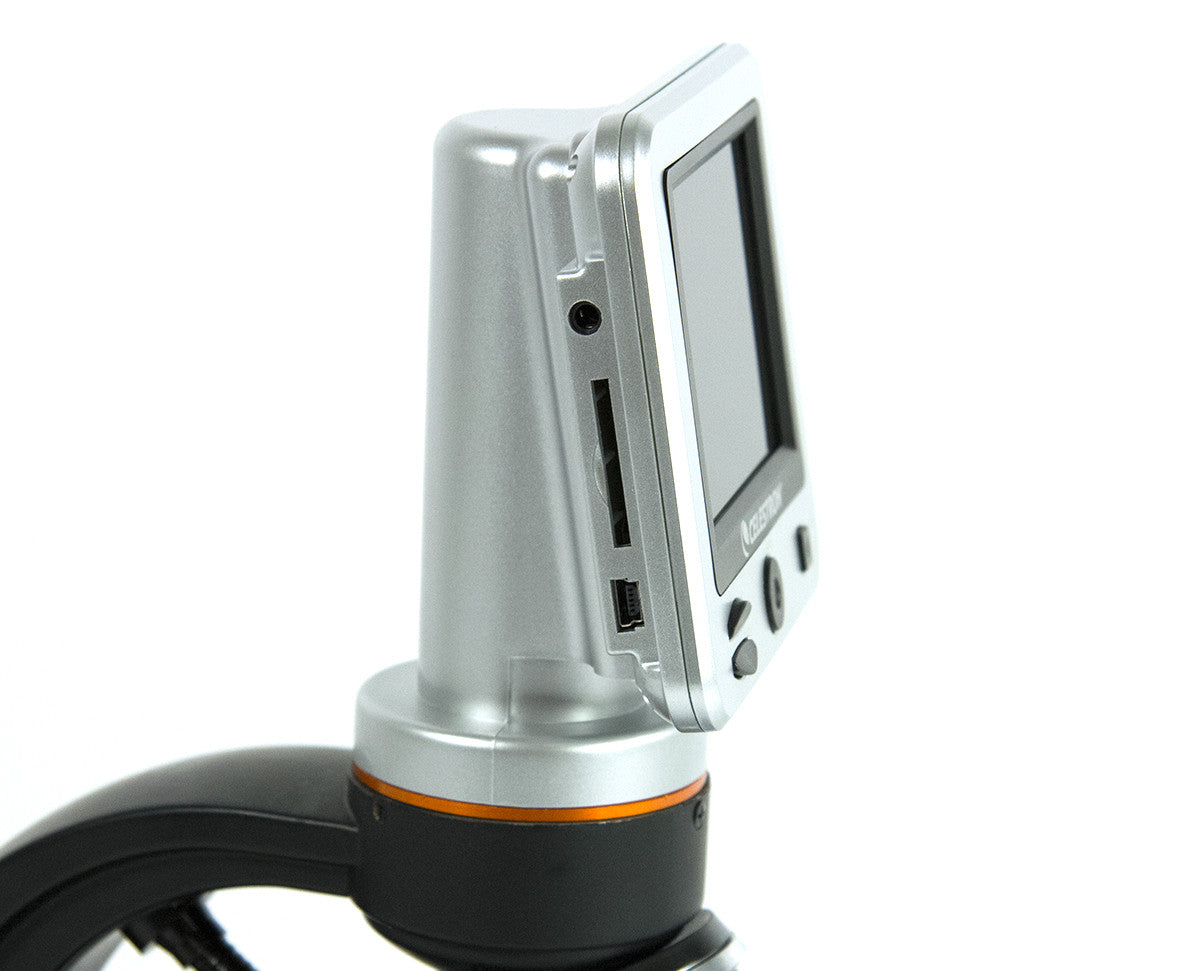

  • 180° rotating head for easy sharing of images
  • Rotating objective lens turret 3 lens powers: 4x, 10x, and 40x
  • Camera sensor acts as 10x eyepiece lens, yielding 40x, 100x, and 400x powers
  • 4x digital zoom for magnification up to 1600x
  • Measuring reticle for comparing specimen sizes
  • 2GB SD card included so you can save up to 620 high-resolution images
  • TV output for display on large monitors for classroom or lab environment

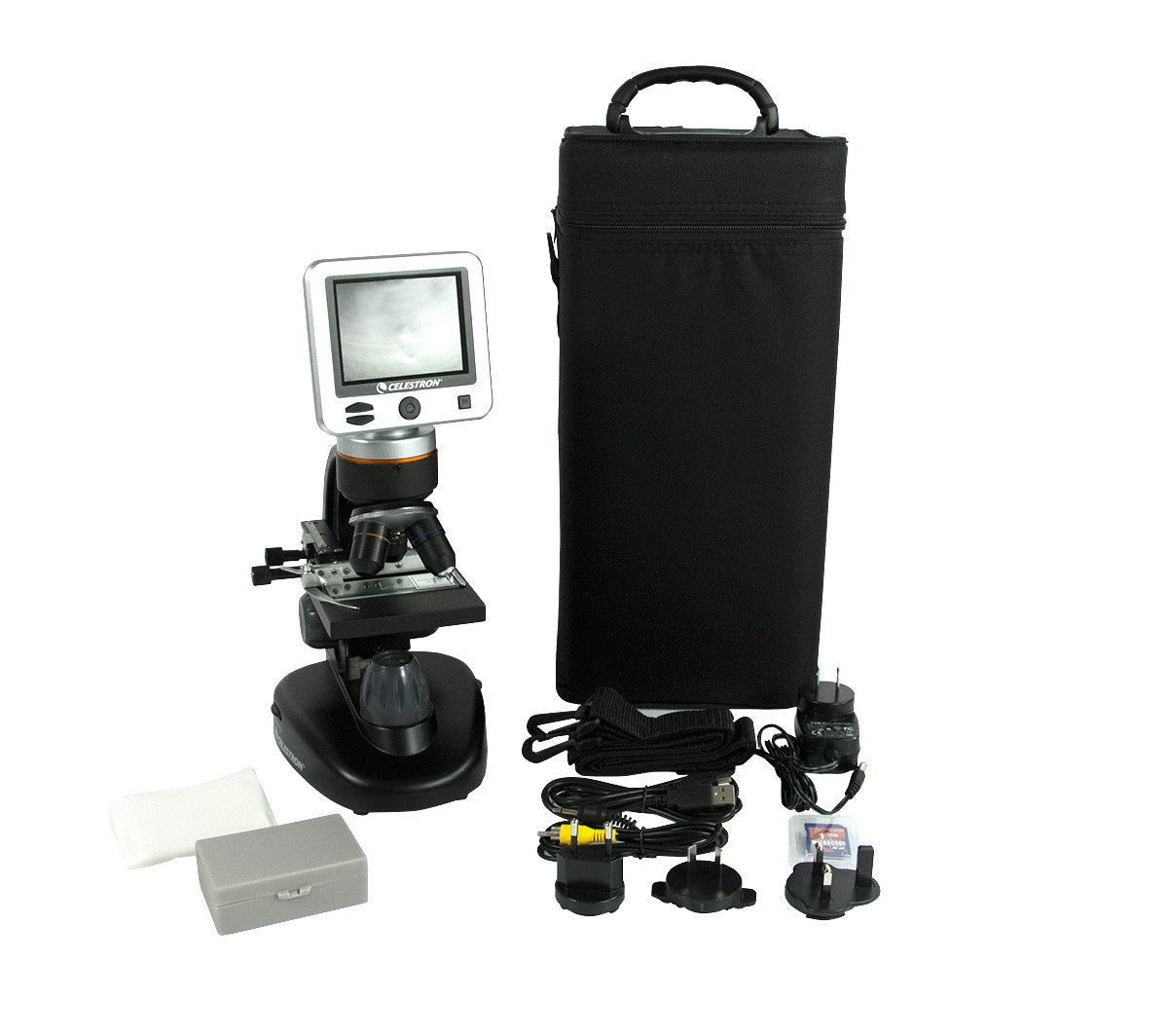

  • Included accessories: 2GB SD card, dust cover, rugged canvas carrying case with shoulder strap, 5 prepared slides, 4 plug international AC adapter

Specifications

General
Type of Microscope: LCD Desktop
Head: 180° rotatable head w/3.5" TFT LCD Screen
Nosepiece: Triple with click stop
Objective(s) Type: (3) Achromatic objectives on turret
Objective(s) Standard: DIN 35 RMS
Objective(s) Magnification: 4x, 10x, 40x
Objective(s) Thread: WJ 4/5" x 1/36"
Focus Type(s): Course Focus
Focus Travel (per rotation): 0.7mm to 35.3mm (.027" to 1.39") (est.)

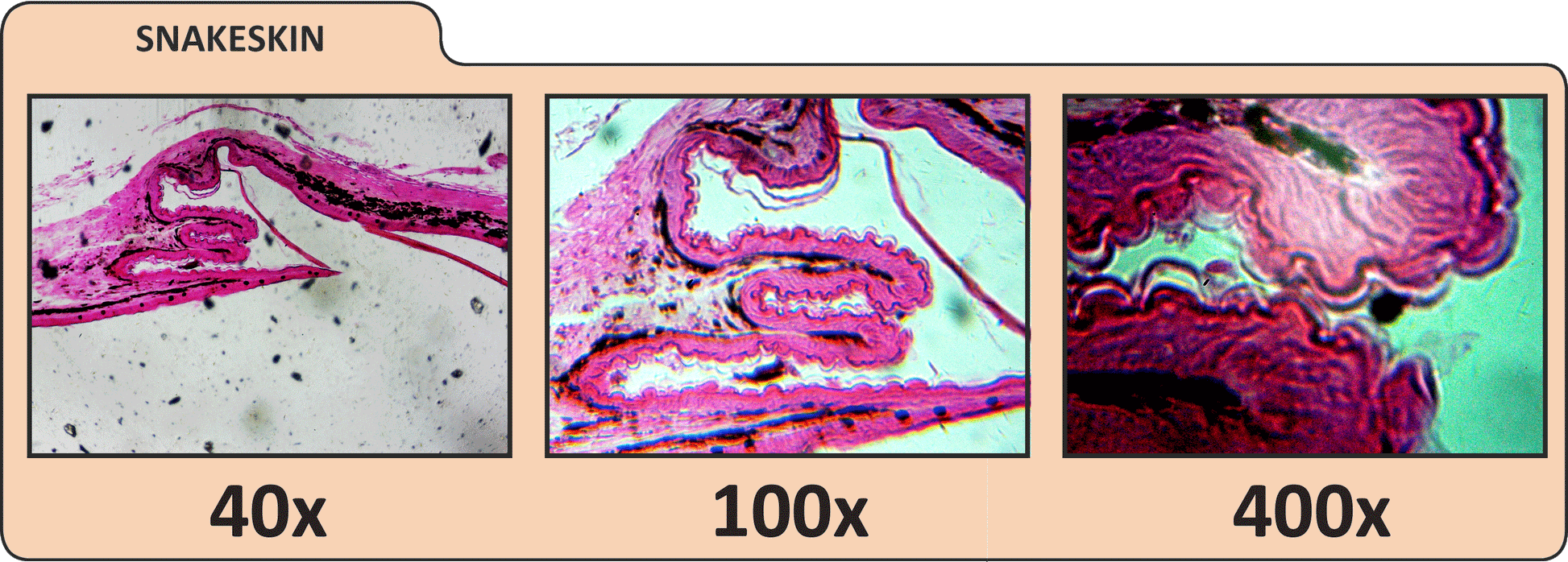

Magnification Range: 40x, 100x, 400x | Up to 1600x with digtial zoom
Illumination Type: LEDs
Illumination Position(s): TBD
Illumination Adjustability Mechanism: Adjustable wheels at base
Power Source: Universal 100 to 240V, 50/60 hz multi-country plug | (4) AA (optional)
Battery Options: Yes (4AA)
Stage: Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") | With Filter wheel | Red, blue, green | 1mm, 3mm, 6mm apertures
Condenser Type: Aplantic
Condenser N.A.: N.A. 65
Stage Diaphragm: Multiple on wheel
Eyepiece Type: CMOS Sensor in lieu of eyepiece
Sensor Size: 5MP | 1/2.5"
Pixel Size: 2.2 μm
Screen type: High Definition TFT LCD Screen | 480 x 272 pixels | 262K colors | Brightnes 400cd/m2
Screen Size: 3.5"
Memory Type: SD Card
Memory Size: 2G SD included | Supports up to 32G
Port(s) In: AC Plug (power) | SD Card slot (32Gmax)
Port(s) Out: Video/ TV out | USB 2.0
AC Adapter: 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long
Still image capture resolution: 2592 x 1944 | 2112 x 1188 | 1538 x 864 | 640 x 480
Video resolution: VGA (640 x 480)
Shutter trigger position: On LCD Screen
Software: Internal Firmware built in
Microscope Dimensions: 170mm x 140mm x 330mm (6.7" x 5.5" x 13")
Microscope Weight: 56 oz (1600g)
Included Items: 2GB SD Card | USB 2.0 Cable (data transfer) | 5 Prepared Slides | 4 plug, multi-country AC adapter | Dust Cover | Carrying Case
View full details

Customers Also Purchased

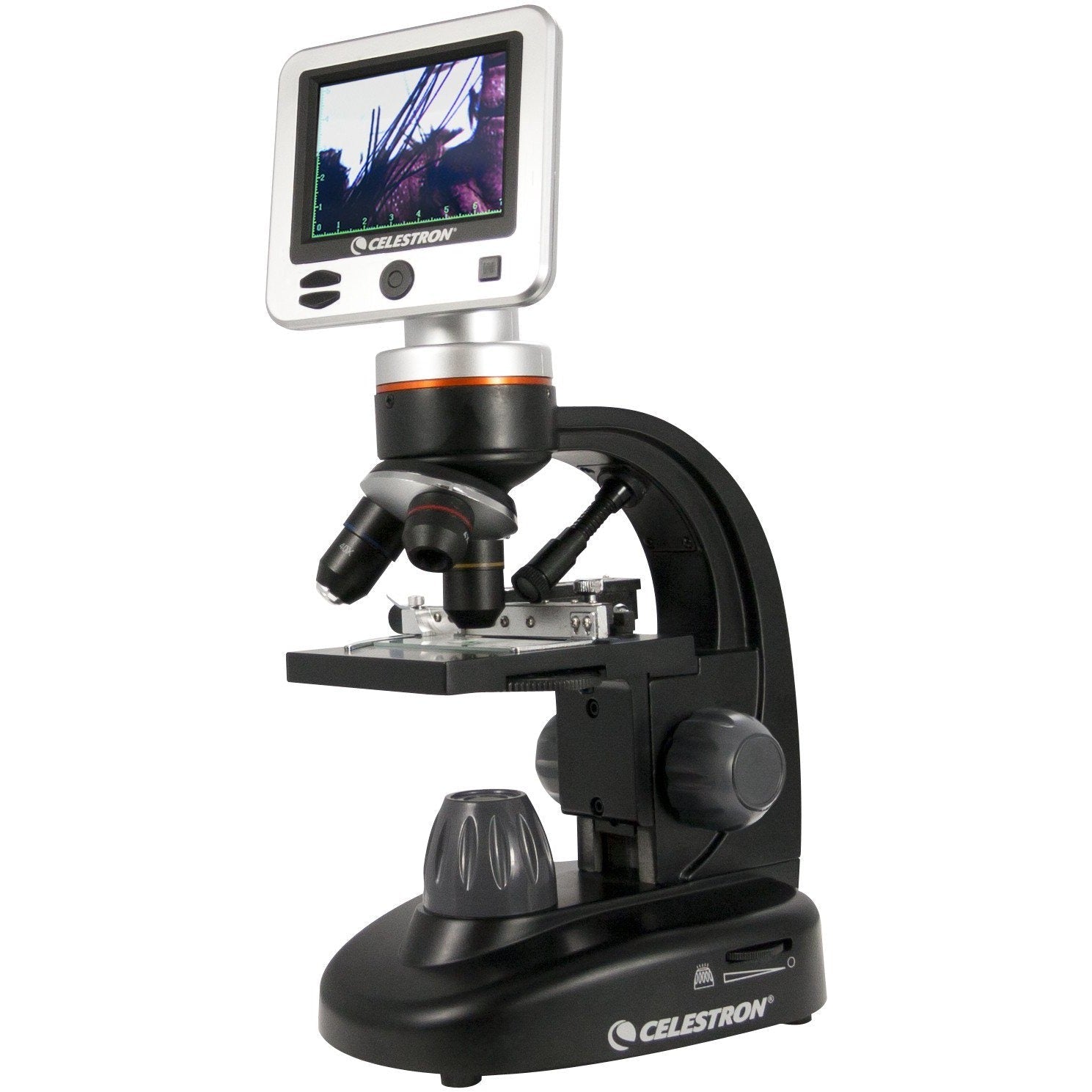

The professional-level Celestron LCD Digital Microscope II is a biological LCD microscope at an affordable price. With fully achromatic lens objectives, a mechanical stage, 3.5” full color TFT screen and 5MP CMOS sensor, the LCD Digital Microscope II allows for high-resolution imaging of specimen slides. The microscope even includes a 1GB SD card, enough storage to capture over 600 high-resolution images for lab reports, papers, lesson, and more.

From 40x magnification up to 1600x with digital zoom, the LCD Digital Microscope II is ideal for viewing a range of cellular specimens on slides, like most traditional microscopes. The LCD screen rotates 180 degrees so you can easily share your discoveries with others. For an even bigger audience, use the TV output to display on a television or projector.

Great for the discriminating professional or serious hobbyist, the LCD Digital Microscope II is ideal for labs, schools and research institutions.



Included Accessories

  • 1GB SD card
  • Dust cover
  • Rugged canvas carrying case with shoulder strap
  • 5 prepared slides
  • 4 plug, multi-country AC adapter
